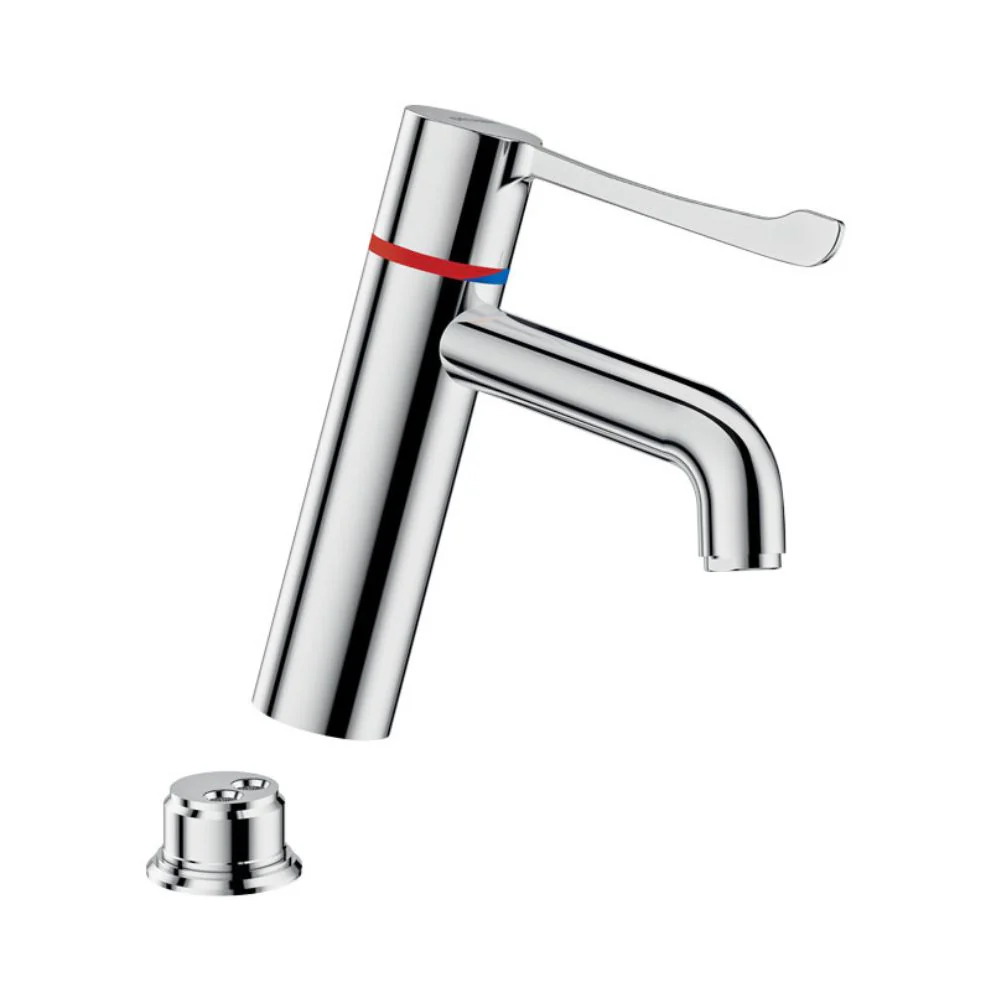

H9605610 SECURITHERM BIOCLIP Removable Thermostatic Basin Mixer Tap
Deck-mounted thermostatic basin mixer tap in chrome-plated brass, designed for accessibility and maximum hygiene in healthcare and care settings. The BIOCLIP removable design allows continuous cleaning and disinfection to reduce bacterial development.

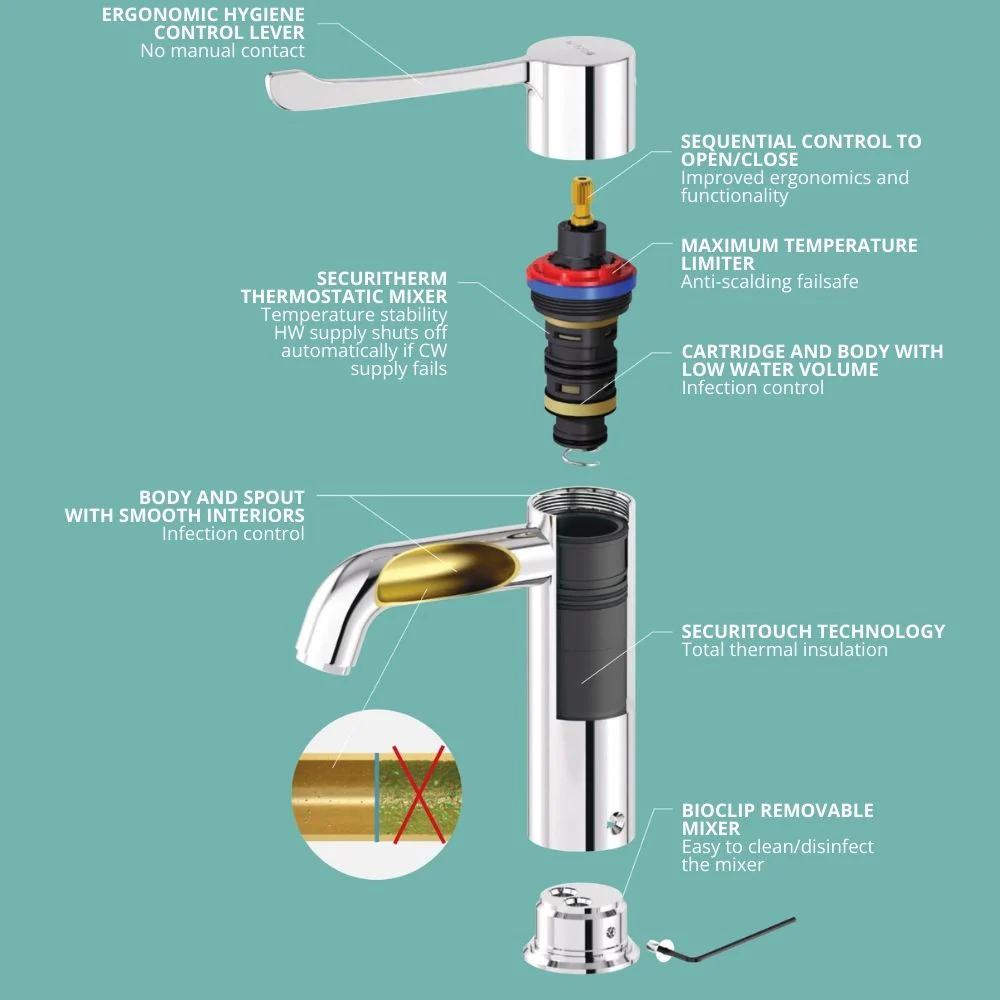

Its thermostatic sequential mechanism opens and closes with cold water, eliminating cross-flow risk between hot and cold supplies. With no non-return valves on inlets, bacterial proliferation is minimised. Safety features include anti-scalding failsafe that shuts off automatically if either water supply fails, plus Securitouch thermal insulation to prevent burns.

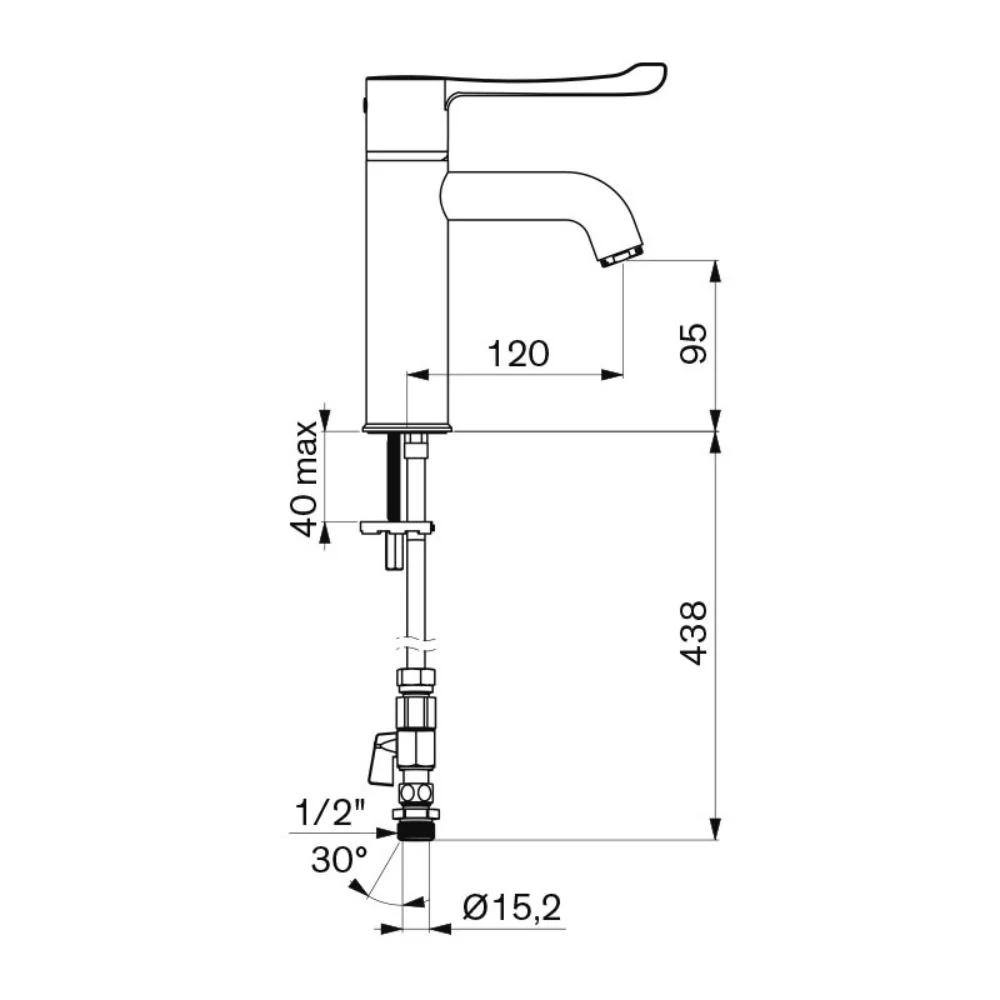

Temperature adjusts from cold water up to 40°C with a fixed maximum limiter. The single-hole mixer features a curved spout (95mm H × 120mm L) with hygienic flow straightener that resists scale build-up and thermal shocks.
Smooth interior surfaces and low water volume further reduce bacterial development. Flow rate is limited to 5 lpm at 3 bar. Hands-free operation via 146mm hygiene control lever eliminates manual contact. Supplied with copper tails, chrome-plated brass stopcocks, and reinforced fixing with stainless steel rods. WRAS approved and backed by a 30-year warranty.
Being WRAS approved it demonstrates compliance with the Water Supply (Water Fittings) Regulations or Scottish Byelaws which require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard.
The DELABIE solution: thermostatic mixers without non-return valves
The problem of elevated cold water temperatures can be the result of cross flow between the DHW and the DCW at the point-of-use, due to faulty non-return valves. If this is the case, hot water can flow back into the cold water supply pipes, increasing the temperature and resulting in bacterial proliferation. However, it is almost impossible to regularly and systematically check the non-return valves on the mixers, unless you have a large budget and a lot of staff.
To overcome this difficulty, DELABIE has designed a thermostatic shower mixer without non-return valves, which prevents any cross flow between the DHW and DCW. It protects patients against the risk of scalding from DHW at 55°C if the cold water supply fails, and also reduces the risk of bacterial proliferation thanks to its mechanism with no non-return valves and its design.
Original: $452.33
-65%$452.33
$158.32
Description
Deck-mounted thermostatic basin mixer tap in chrome-plated brass, designed for accessibility and maximum hygiene in healthcare and care settings. The BIOCLIP removable design allows continuous cleaning and disinfection to reduce bacterial development.
Its thermostatic sequential mechanism opens and closes with cold water, eliminating cross-flow risk between hot and cold supplies. With no non-return valves on inlets, bacterial proliferation is minimised. Safety features include anti-scalding failsafe that shuts off automatically if either water supply fails, plus Securitouch thermal insulation to prevent burns.
Temperature adjusts from cold water up to 40°C with a fixed maximum limiter. The single-hole mixer features a curved spout (95mm H × 120mm L) with hygienic flow straightener that resists scale build-up and thermal shocks.
Smooth interior surfaces and low water volume further reduce bacterial development. Flow rate is limited to 5 lpm at 3 bar. Hands-free operation via 146mm hygiene control lever eliminates manual contact. Supplied with copper tails, chrome-plated brass stopcocks, and reinforced fixing with stainless steel rods. WRAS approved and backed by a 30-year warranty.
Being WRAS approved it demonstrates compliance with the Water Supply (Water Fittings) Regulations or Scottish Byelaws which require that a water fitting should not cause waste, misuse, undue consumption or contamination of the water supply and must be ‘of an appropriate quality and standard.
The DELABIE solution: thermostatic mixers without non-return valves
The problem of elevated cold water temperatures can be the result of cross flow between the DHW and the DCW at the point-of-use, due to faulty non-return valves. If this is the case, hot water can flow back into the cold water supply pipes, increasing the temperature and resulting in bacterial proliferation. However, it is almost impossible to regularly and systematically check the non-return valves on the mixers, unless you have a large budget and a lot of staff.
To overcome this difficulty, DELABIE has designed a thermostatic shower mixer without non-return valves, which prevents any cross flow between the DHW and DCW. It protects patients against the risk of scalding from DHW at 55°C if the cold water supply fails, and also reduces the risk of bacterial proliferation thanks to its mechanism with no non-return valves and its design.
